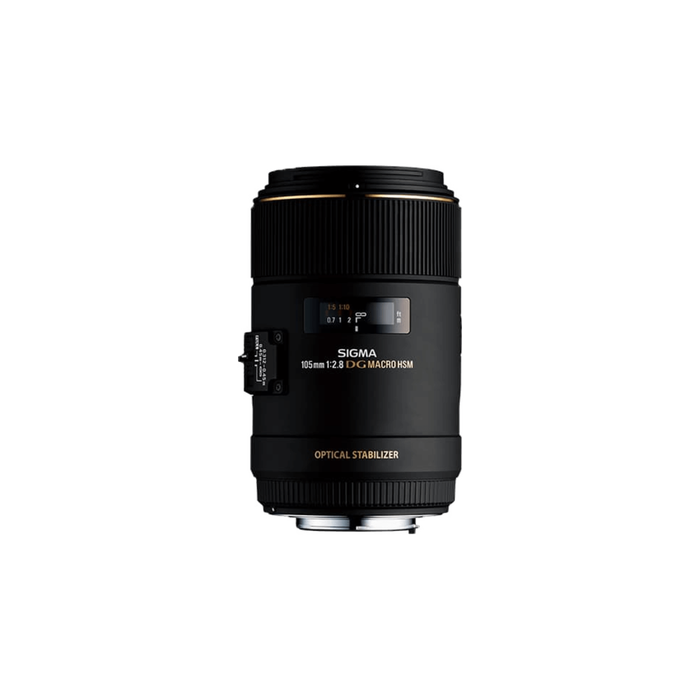

105mm F2.8 EX DG OS HSM Macro
This model is discontuned
Big images of little things
- Large aperture macro lens
- Optical stabilization compensates for camera shake
- Carrying case, lens hood, front & rear caps
Few in Stock
A Special Low Dispersion (SLD) lens and one high refractive index SLD lens provide excellent correction for all types of aberration and distortion. A floating focusing system moves two different lens groups in the optical path to different positions. This system compensates for astigmatic aberration and spherical aberration and provides extremely high optical performance from infinity to 1:1 Macro.
The Super Multi-Layer Coating reduces flare and ghosting, providing high contrast images. It is also possible to use this lens with Sigma's APO TELE CONVERTERS. The HSM (Hyper Sonic Motor) ensures quiet and high speed autofocus as well as full-time manual focus capability. This lens features a rounded 9 blade diaphragm creating an attractive blur to the out of focus areas of the image.
| Product Lines | Other |
|---|---|
| Construction | 16 Elements in 11 Groups |
| Lens Type | Macro |
| Sensor Size | Full Frame |
| Angle of view | 23.3º |
| Number of diaphragm blades | 9 (rounded diaphragm) |
| Minimum aperture | F22 |
| Minimum focusing distance | 31.2 cm / 12.3 in |
| Maximum magnification ratio | 1:1 |
| Dimensions (diameter x length) | Canon EF ⌀ 78.3 mm × 126.4 mm |
| Weight (g) | Canon EF 725g |
| Filter diameter | 62mm |
| Supplied Accessories | Lens hood LH680-03, hood adapter HA680-01,Front cap LCF-62mm III, Rear cap LCR II, Lens Case LS-258H |
| Accessories | WR PROTECTOR 62mm, PROTECTOR 62mm, WR UV FILTER 62mm, WR CIRCULAR PL FILTER 62mm |
| EAN-code | Canon E/EF 085126258542 |
OS - Optical Stabilizer Function
HSM - Hyper-Sonic Motor
EX - EX Lens
* Nikon mounts do not have an aperture ring. Some functions may not work depending on the camera model.
** For Nikon and Canon mounts, Optical Stabilizer (OS) function will not work with film SLR cameras except Nikon F6 and Canon EOS-1V.
*** When using the APS-C Hood Adapter HA680-01 with digital cameras with larger than APS-C size image sensor, vignetting will occur. Please remove the hood adapter if you are using these cameras.
**** The appearance, specifications, and the like of the product are subject to change for improvement without notice.
Lens Construction
MTF Chart
