14-24mm F2.8 DG DN
Extra wide mirrorless wide-angle zoom
- Unprecedented high-resolution image quality
- Uniform rendering performance to the edges
- Features exclusive low dispersion glass elements
- Stepping motor for high speed, quiet AF
- Dust and splash resistant structure
- Water and oil repellent coating
- Rear filter holder as a standard accessory
- NPC (Nano Porous Coating)
- Designed to minimize flare and ghosting
- Compatible with Lens Aberration Correction*
In Stock
One FLD glass and five SLD glass elements are appropriately arranged to suppress chromatic aberration to the edge of the frame. Three aspherical lenses, including a large-diameter aspherical lens at the foremost surface, are used to effectively minimize coma flare, etc., thereby achieving mind-blowing resolution. The super multi-layer coating is combined with a newly developed NPC (Nano Porous Coating)*. The lens has been designed to be less susceptible to strong incident light such as backlight.
Incorporating a stepping motor enables the high speed, quiet AF drive. Shooting is comfortable even in target AF such as Face/Eye Detection AF and during video shooting. The AFL button which can be assigned with various functions widens the range of operations available on the lens. Furthermore, the lens features a dust- and splash-proof structure, along with a water- and oil-repellent coating on the frontmost surface of the lens, which further supports shooting in various environments.
The lens comes with a rear filter holder equipped with a fall prevention lock for attaching sheet type rear filters for shooting starry skies.
| Product Lines | Art |
|---|---|
| Construction | 18 Elements in 13 Groups |
| Lens Type | Wide Angle |
| Sensor Size | Full Frame |
| Angle of view | 114.2° - 84.1° |
| Number of diaphragm blades | 11 (rounded diaphragm) |
| Minimum aperture | F22 |
| Minimum focusing distance | 28 cm |
| Maximum magnification ratio | 1:7.3 |
| Dimensions (diameter x length) | L-mount ⌀ 85.0 mm × 131.0 mm |
| Weight (g) | L-mount 795 g |
| Filter diameter | n/a |
| Edition number | A019 |
| Supplied Accessories | Cover Lens Cap LC850-01, Rear Cap LCR II, Case LS-588L |
| Accessories | USB-dock UD-11 (L-mount only) |
| EAN-code | L-mount 085126213695 |

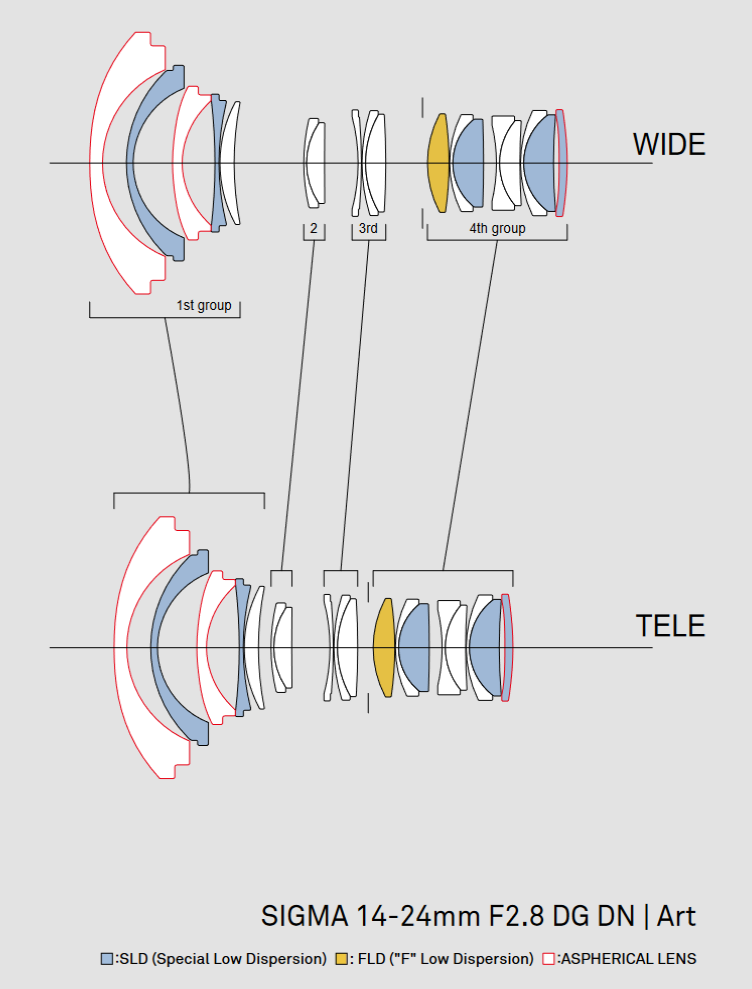

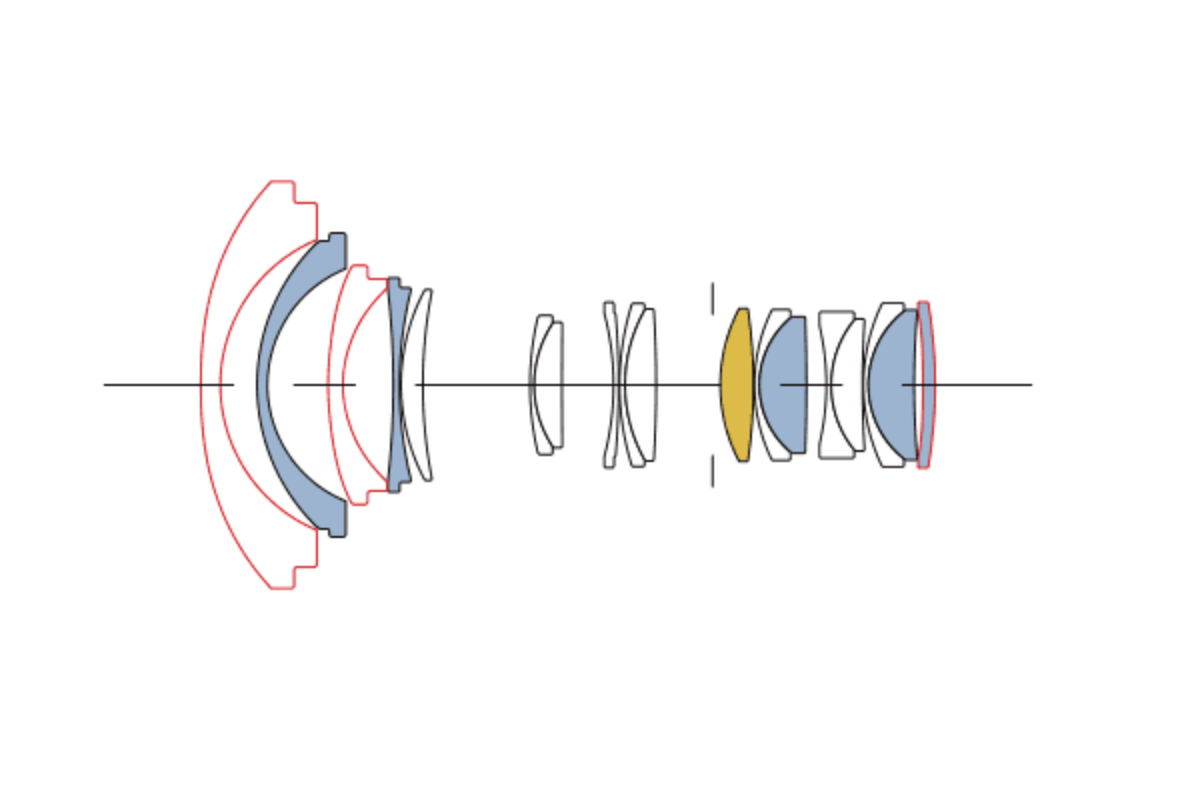

Lens Construction

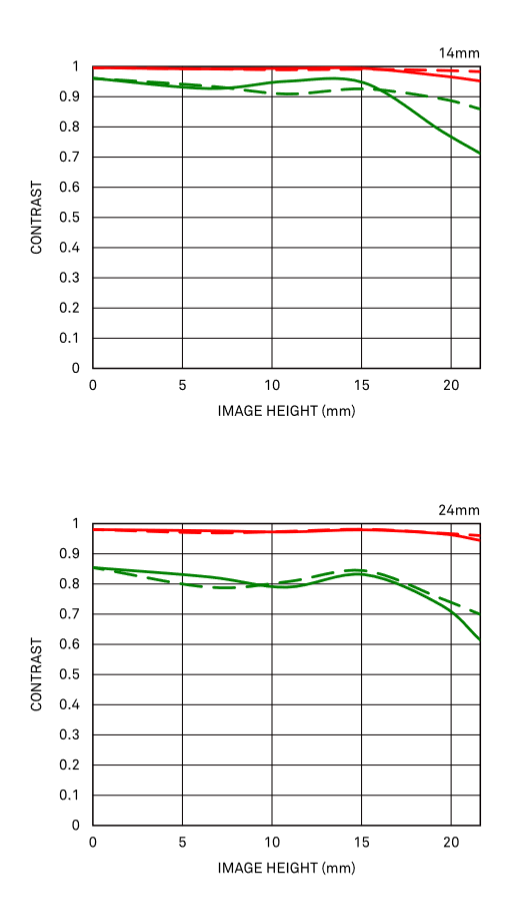

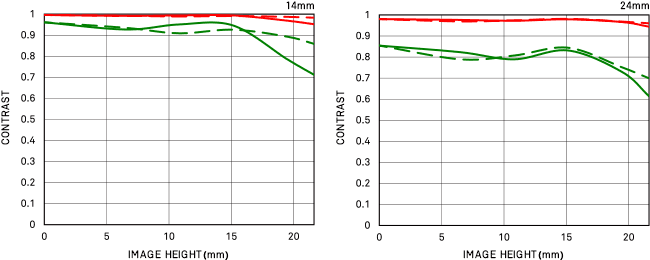

Geometrical MTF Chart

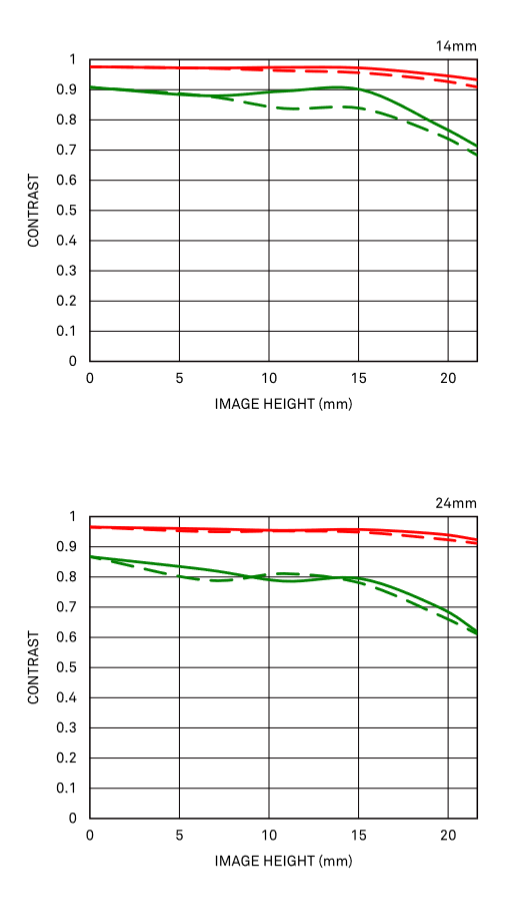

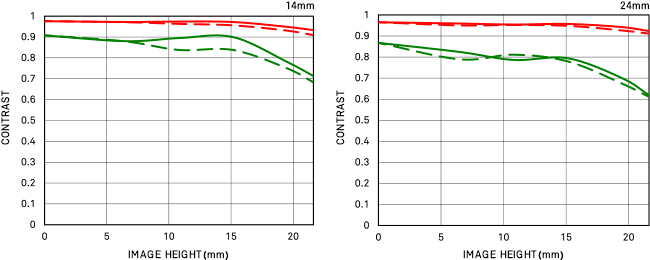

Diffraction MTF Chart
