Sports

150-600mm F5-6.3
DG DN OS

from 17 190 SEK

Choose a mount to see availability

Powerful ultra-telephoto zoom
The first ever Sports line lens for mirrorless
Uncompromising optical performance throughout the zoom range
Fast, high-precision AF and impressive functionality
Optical Stabilizer
Outstanding build quality
Dust and splash resistant structure
Water and Oil repellent coating (front element)
Made in Japan craftsmanship

Buy from reseller

AWARDS

EISA	2022
LUCIE TECHNICAL	2021
HOT ONES	2022

Specifications

Features

Construction

Technology

Sample Images

Angle of view	Telephoto
Camera Type	Mirrorless
Lens Mount	L-Mount, Sony E-mount
Sensor Size	Full Frame
Construction	25 elements in 15 groups
Angle of view	4.1° (Full-frame), 2.7° (APS-C)
Number of diaphragm blades	9 (rounded diaphragm)
Minimum aperture	F22-29
Minimum focusing distance	58-280cm
Maximum magnification ratio	1:2.9
Filter diameter	⌀95mm
Dimensions (diameter x length)	L-Mount Sony E-mount ⌀ 109.4 mm x 263.6 mm ⌀ 109.4 mm x 265.6 mm
Weight (g)	2100 g
Weight (g)	L-Mount Sony E-mount 2100g 2100g
Edition number	S021
Supplied Accessories	Front Cap LCF-95mm III, Front Cover LC-747E, Lens Hood LH1034-01, Tripod Socket TS-121, Rear Cap LCR II, Case LS-747SEL
Accessories	Tele Converter TC-1411 (L-mount only), Tele Converter TC-2011 (L-mount only), USB-dock UD-11 (L-mount only), Tipod Socket TS-81, WR Ceramic Protector Filter 95mm
EAN-code	L-Mount Sony E-mount 085126747695 085126747657
Specifications Info	* All figures calculated by L-Mount. Note: The L-Mount Trademark is a registered Trademark of Leica Camera AG. About Product Name: Product name includes "DG" when the lens is designed to deliver the ultimate in performance on cameras with full-frame sensors, and "DN" when the lens design is optimized for mirrorless cameras with the short flange focal length.

Uncompromising optical performance throughout the zoom range

The Sigma 150-600mm F5-6.3 DG DN OS | Sports offers outstanding optical performance throughout its zoom range and at all apertures, yielding professional quality results.

Based on the latest optical design technology, its lens construction of 25 elements in 15 groups includes a range of special types of high-performance glass that ensures thorough control of different types of aberrations. This helps give images the resolution and clearest detail—not only at the tele end around 600mm, which is critical for an ultra-telephoto zoom, but also throughout its entire zoom range—with no compromise. The lens was designed with image quality in the out-of-focus areas in mind as well, with attractive compression and beautiful bokeh for creating eye-catching images that can only be achieved with a long focal length.

Through improvements to the optical and mechanical designs as well as extensive simulated testing, the lens has achieved high resistance to ghosting and flare. This helps ensure sharp and high-contrast images even in strong sunlight or in backlit conditions.

At the wide end of 150mm, the lens has an impressive minimum focusing distance of 58cm. On the L-Mount, the use of two dedicated teleconverters will allow you to shoot with AF up to 1200mm. With these features, this new ultra-telephoto lens is the perfect tool for tackling a broad range of shooting situations, giving you a greater freedom in your choice of composition.

Compatible with TELE CONVERTER TC-1411 / TC-2011 for L-Mount

The lens is compatible with TELE CONVERTER TC-1411 (1.4x) and TC-2011 (2x).

The Sigma TELE CONVERTER TC-1411 is a teleconverter designed exclusively for the use with Sigma L-Mount lenses.
Mounted between a lens and a camera body, the TC-1411 magnifies the focal length of the camera by 1.4x.

The Sigma TELE CONVERTER TC-2011 is a teleconverter designed exclusively for the use with Sigma L-Mount lenses.
Mounted between a lens and a camera body, the TC-2011 magnifies the focal length of the camera by 2x.

Fast, high-precision AF and impressive functionality

The 150-600mm F5-6.3 DG DN OS | Sports comes with the pro-level functionality that defines the Sigma Sports line lens, which is designed for capturing fast-action subjects.
With an AF actuator controlled by a stepping motor, the lens combines fast and quiet autofocus with excellent tracking of moving objects. Furthermore, a (*)high-precision magnetic sensor enables highly accurate positioning for fast and high-precision AF. This is particularly impressive on an ultra-telephoto lens where the focus lens has to move a significant distance.The OS function delivers effective image stabilization that offers an advantage of approximately 4 stops*1, which is ideal for hand-held shooting at slower shutter speeds. It is possible to change the OS settings using the OS switch and Custom Mode switch to best suit the shooting situation. The lens has a Focus Limiter switch offering three-zone AF modification, which helps to speed up AF performance, and on the L-Mount it is possible to set a custom focusing limit*2 via the Sigma USB DOCK UD-11. The lens also has three AFL buttons to which you can assign various functions on the camera side depending on the model of camera used. This ensures that key settings are able to be customized to suit your shooting style and be accessed easily so that you can adapt quickly to changing conditions.
With the fast and high-precision AF, 4 stops image stabilization, and a wide range of customizable functionality that comes with the Sigma 150-600mm F5-6.3 DG DN OS | Sports, the creative possibilities are limitless.

*1 Based on CIPA guidelines (measured in 600mm with a 35mm full-size image sensor)
*2 Function available on SIGMA fp and fp L(it is necessary to update the camera’s firmware) .

*It is a sensor that can detect the position of the focus lens with a high degree of precision by using a magnetic signal. This is done in real time to improve AF accuracy.

1 AFL buttons
Various functions can be assigned to three AFL buttons on the camera side depending on the model of camera used.

2 Zoom Torque switch
The newly developed switch lets you change the zoom ring torque (resistance) and lock it at the wide end.
L (Lock): The zoom ring fixed at the wide end.
T (Tight): The zoom ring torque set on the higher side and kept at a focal length. This prevents the lens from extending or retracting due to its own weight when pointed either upward or downward.
S (Smooth): The zoom ring torque set to low allows the lens to zoom in and out smoothly, suitable for straight zoom.

3 Focus Mode switch

4 Focus Limiter switch

5 OS switch
The OS switch toggles between two OS settings: Mode 1 for general photography and Mode 2 for motor sports and other applications requiring panning.

6 Custom Mode switch
Switch the OS effect.

■Default setting: for Sony E-Mount
OFF: Standard
The OS effect is well-balanced and suitable for a wide variety of scenes.
C1: Dynamic View Mode
This mode offers a recognizable OS effect to the image in the viewfinder. This helps to ensure the composition of images quickly.
C2: Moderate View Mode
This mode is quickly able to ascertain the difference between fine composition adjustment and unwanted camera shake. It provides a natural and smooth viewfinder image even when composition is changed rapidly.

■For L-Mount (with USB DOCK UD-11)
The OS effect and a focus limiter setting can be assigned to either C1 or C2.

*Function available on SIGMA fp and fp L (it is necessary to update the camera’s firmware)

Supports USB DOCK UD-11 for L-Mount

With the 150-600mm F5-6.3 DG DN OS | Sports, it is possible to set Custom Mode switch, update lens firmware, and adjust the sensitivity of the manual focus ring. It is also possible to change the focus limiter distance.

*Function available on supported cameras only.

Designed exclusively for the use with a Sigma Contemporary, Art, or Sports lens and its accessories, the Sigma USB DOCK allows users to update firmware and adjust the sensitivity of speed to the MF function* through the UD-11.

* Scope of adjustment varies depending on specifications of the individual product.

Outstanding build quality optimized for ultra-telephoto photography

The 150-600mm F5-6.3 DG DN OS | Sports combines the build quality that upholds the Sigma Sports line standards with excellent operability, taking into account different shooting environments and modes of operation expected with an ultra-telephoto lens.
A dust and splash resistant structure*1 that stops water drops or dust from getting into the lens, combined with a water and oil repellent coating applied to the front element, gives you a peace of mind even in a harsh shooting environment.
The lens features a Dual Action Zoom, which supports both straight zoom and ring zoom, allowing you to change the angle of view in a quick and intuitive way. In addition, there is also a newly incorporated Zoom Torque switch, with which you can change the resistance of the zoom ring and lock it at the wide end, ensuring ease of zoom operation as well as elimination of zoom creep.
On the lens body there is a magnesium tripod socket attachable to an Arca Swiss type clamp. The foot is removable and may be replaced with an optional lens foot (replaceable lens foot type) or mounted on a monopod.
The lens body uses parts made of aluminum and TSC (Thermally Stable Composite), where they are most suitable. TSC is a type of polycarbonate with a thermal expansion rate similar to that of aluminum, ensuring the lens behaves consistently at different temperatures. By taking advantage of its design intended exclusively for mirrorless camera systems, the lens is both robust—an attribute essential for the Sports line of lensesーand compact and lightweight. Compared to the Sigma 150-600mm F5-6.3 DG OS HSM | Sports, which is also a Sports line lens but designed for SLR cameras, the new lens is lighter by 760g and shorter by 26.6mm*2.

*1 Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.
*2 The 150-600mm F5-6.3 DG DN OS | Sports for L-Mount, compared to the 150-600mm F5-6.3 DG OS HSM | Sports for Sigma SA-mount.

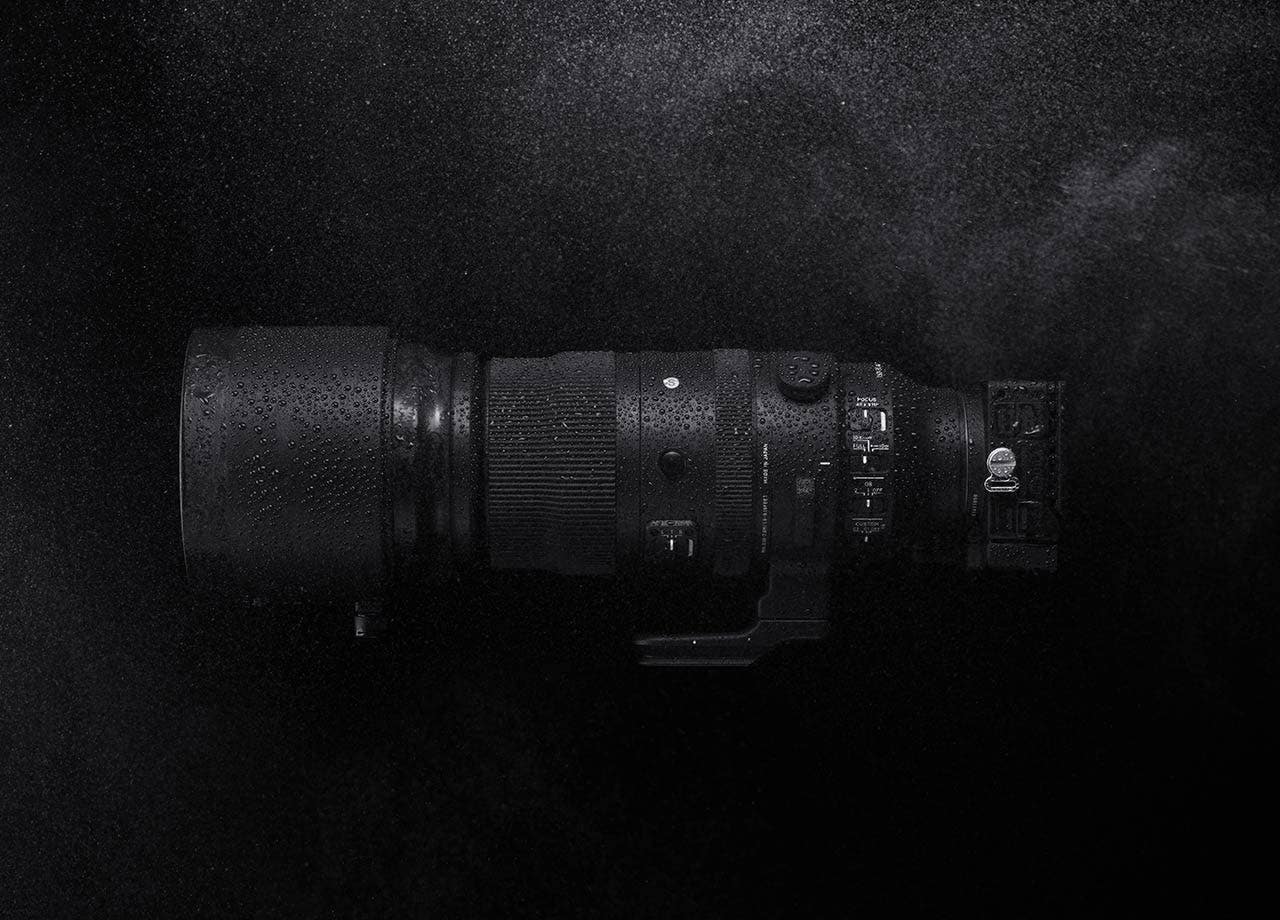

Dust and Splash Resistant Structure*

This lens features a highly effective dust and splash resistant structure with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection, allowing you to work in all types of weather.

* Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.

Tripod socket

The tripod socket with 90° click stops, made with a magnesium alloy that is both lightweight and tough, is incorporated to ensure easier changes of shooting position from vertical to horizontal and vice versa. It can be attached directly to an Arca Swiss type clamp.

OS (Optical Stabilizer) function

SIGMA's original OS (Optical Stabilizer) function uses sensors inside the lens to detect any motion, then moves specific lens elements in order to effectively minimize blur caused by such movement. Owing to the stabilized image in the viewfinder, it is possible to fine-tune composition and ensure accurate focusing.

Inner focus system

To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.

Compatible with Lens Aberration Correction

Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.

*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with 'ON' or 'OFF' in the camera menu, please set all aberration correction functions to 'ON'(AUTO).

Super Multi-Layer Coating

SIGMA's own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current SIGMA range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, SIGMA's Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast.

Water and oil repellent coating

Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.

Focus Mode Switch

Using this swich, it is possible to switch the focus mode between AF and MF.

AFL button

the AFL button can be assigned with various functions widens the range of operations available on the lens.

Dust and Splash Resistant Structure

This lens features a highly effective dust and splash resistant structure with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection.

*Although this construction allows the lens to be used in light rain, it is not the same as being waterproof, so please prevent large amounts of water from splashing on the lens. It is often impractical to repair the internal mechanism, lens elements and electric components if they are damaged by water.

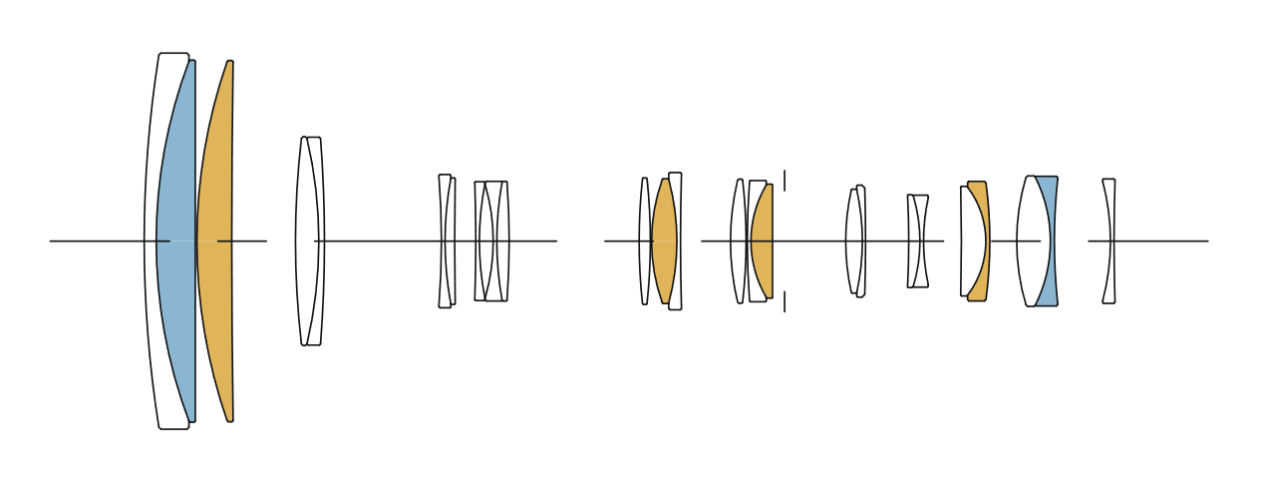

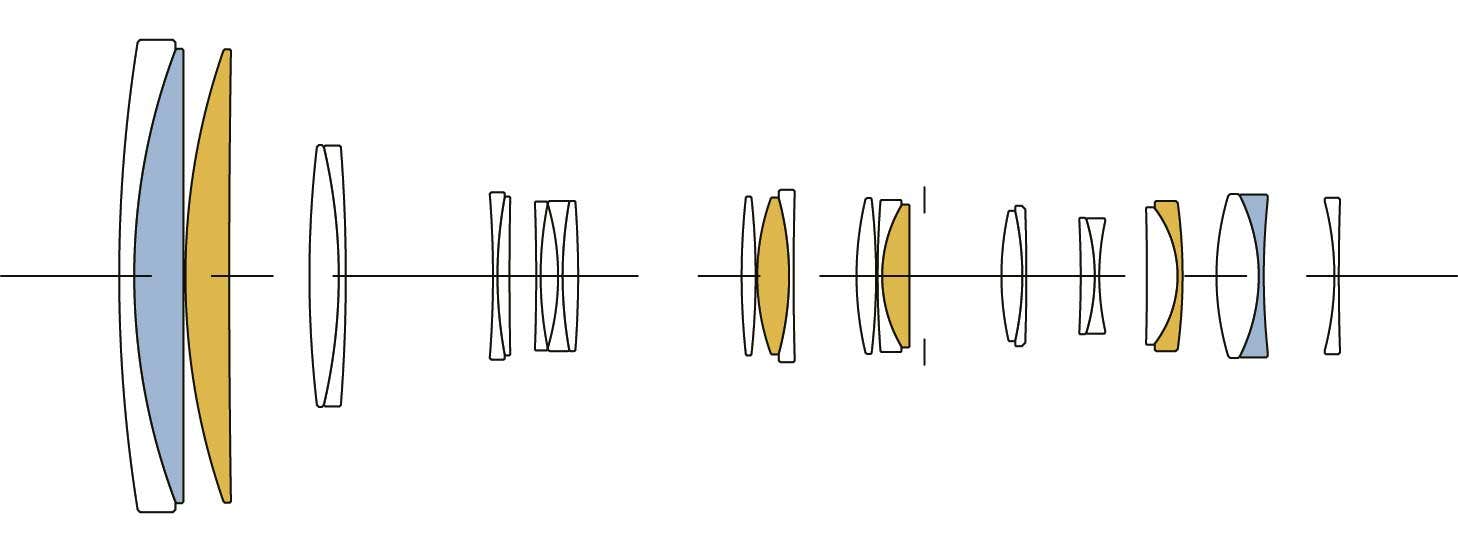

Lens construction: 25 elements in 15 groups, with 4 FLD and 2 SLD elements

Compatible with high-speed autofocus

Stepping motor

Support DMF and AF+MF

OS switch

Custom Mode switch

Zoom Torque switch

Tripod Socket (Replaceable lens foot type) TS-121 fixed

Cover Hood (LH1034-01)

Compatible with SIGMA TELE CONVERTER TC-1411 / TC-2011 (sold separately / for L-Mount only)

Compatible with SIGMA USB DOCK UD-11 (sold separately / for L-Mount only)

Compatible with SIGMA TRIPOD SOCKET TS-81 (Replaceable lens foot type / sold separately)
